10 Audit Log and Evidence Integrity

TraxrGRC records every change to its records and configuration, every sign-in and refused request, in an append-only audit log protected by a hash chain. This chapter describes what is recorded, how to search and export it, how to verify its integrity, how retention works, and how to present it to an auditor.

10.1 What is logged

Every entry records:

The categories recorded:

Failed sign-ins carry a reason:

No account is created for an unknown email by a failed sign-in.

To keep the log from flooding, failed sign-ins are recorded at most 60 a minute per address, and refused requests at most 10 a minute per person (or per address without a valid token). The next entry written records how many were dropped (suppressedBefore).

Changes are recorded in the same database transaction as the change itself wherever the change is transactional, so a change that commits always has its entry. A CSV import writes its entries together just before the import commits, each marked with the import as its source, plus one summary entry.

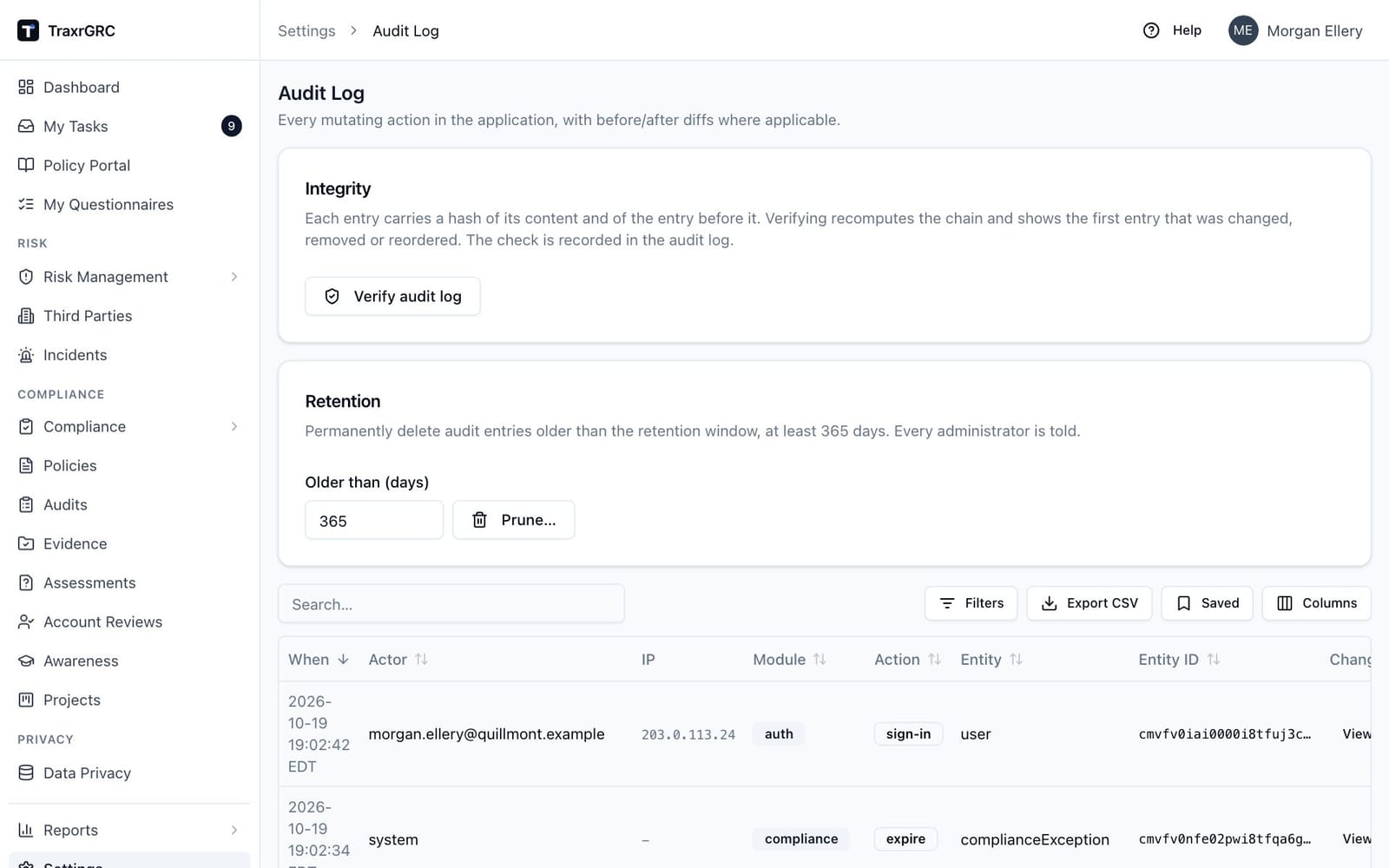

10.2 The Audit Log page

Open Settings → Audit Log (address /settings/audit-log) from its card on the Settings page; security alert emails link to it too. Viewing needs auditLog:read at All, held by administrators and by the built-in GRC Manager and Auditor roles.

Administrators see two cards above the table, Integrity and Retention; other readers see only the table.

10.2.1 Searching and filtering

• Search… matches the actor, entity type, entity ID and action.
• Filters opens a panel with a filter for each column: free text for Actor, IP and Entity ID (matching any part of the value), dropdowns for Module, Action and Entity whose options are the values present in the log, and a date picker for When, which shows the entries of that calendar day in your display time zone.
• The log opens sorted by When, newest first. Click a column heading to sort another way.
• Saved stores the current filters under a name, for example "Sign-in failures" (module auth, action sign-in.failed), for reuse.
• Columns hides and shows columns.

Useful filters:

10.2.2 Viewing a change

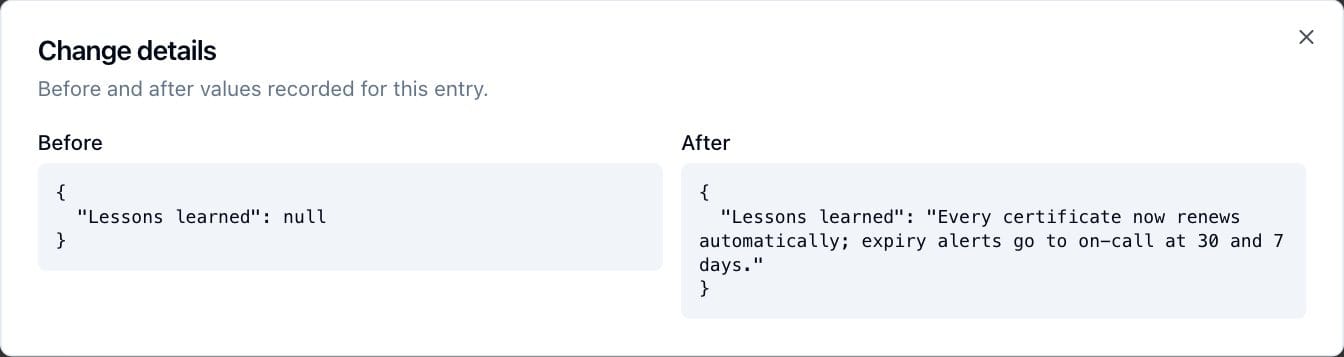

Click View diff in the Changes column to open Change details, with the Before and After values side by side, exactly as recorded.

10.2.3 Exporting

Export CSV downloads the entries matching the current search and filters, with the columns When, Actor, IP, Module, Action, Entity, Entity ID and Changes. Times are in UTC (ISO 8601). An export holds at most 5,000 rows; when more match, a warning tells you so; narrow by day with the When filter, or by module, action, entity or actor, and export each part.

The Changes column of the export holds the recorded change as compact JSON, with its before, after and, where recorded, source values. It is empty for entries that record no change.

10.3 The hash chain

Every audit entry carries three values set by the database when the entry is inserted: a sequence number (its chain position), the hash of the previous entry, and its own hash. The hash is SHA-256 over the entry's content and the previous hash:

The actor's user id is deliberately outside the hash: deleting a user clears it, and a restore links it back, without breaking the chain.

Because each hash covers the one before it, changing, deleting or reordering any entry breaks every link after it. The database protects the chain in three layers:

1. Insert trigger. A database trigger computes the position and hashes under a lock, so concurrent writes form one linear chain and no application code can skip it.
2. Append-only trigger. Updates and deletes on the audit log are refused by the database, from the application or any other client, except the two maintenance operations below.
3. Separate database role. The application connects as a role (default grc_app) that may only read and insert audit entries, owns nothing, and cannot change or disable the triggers. Only the database owner can.

The two maintenance operations run as owner functions: pruning (below) and relinking actor ids after a restore.

Within these limits, the chain is tamper-evident to everyone except the database owner. Someone holding the owner credentials could, in principle, rewrite entries and recompute the chain after them. Keep the owner password (DATABASE_URL for the migrate container) out of daily use, and record the result of each verification outside TraxrGRC (below), so a rewritten chain disagrees with your record.

10.3.1 Verifying the chain

On screen, administrators:

1. Open /settings/audit-log.
2. In the Integrity card, click Verify audit log.
3. Read the result under the button:
   • "Intact: N entries verified (chain positions A to B)." Every entry from position A to B links correctly and matches its hash.
   • "Broken at entry <id> (<reason>) after N intact entries." The first entry that fails, or "at the end of the chain" when entries are missing from the end.

Verification reads the whole log in a single consistent snapshot, in batches of 5,000, and is itself recorded as an auditLog verify entry with the result.

From the command line, on a Docker Compose deployment:

docker compose exec web ./node_modules/.bin/tsx prisma/audit-verify.ts

It prints the result as JSON, for example {"ok":true,"rows":18234,"fromSeq":0,"toSeq":18234}, records an auditLog verify entry with actor system and "via":"cli", and exits with status 0 when intact, 1 when broken and 2 on error. Run it on a schedule (cron, your monitoring system) and alert on a non-zero exit; see Security Hardening.

10.3.2 What to do if verification fails

1. Do not prune, restore or otherwise change the database. Take a backup (see Backup and Restore) and keep it as evidence.
2. Note the entry id and reason. Look at the entries around it in the table.
3. Compare with your most recent backup: restore it to a separate instance and verify there to establish when the break appeared.
4. Treat it as a security incident: the change needed database owner rights or direct access to the database files.

10.4 Retention

The audit log is kept indefinitely unless an administrator prunes it. To prune:

1. In the Retention card, enter Older than (days), 365 to 3650 (default 365).
2. Click Prune… and confirm Prune audit entries? with Prune.

The database removes the oldest run of the chain whose entries are all older than the cutoff, strictly in chain order, and records the last removed entry as the anchor that verification starts from. An old entry appended late, for example by a restore, waits until everything before it is old enough too. The database itself refuses to delete anything less than 365 days old, whatever the request.

Each prune writes an auditLog delete entry with the cutoff and the number removed, and emails every administrator ("Audit log entries pruned"). After a prune, verification reports chain positions from the anchor onward.

Before pruning, export or back up the period you remove if your retention policy requires you to keep it. Backups contain the audit log; see Backup and Restore for how a restore treats the live log.

10.5 Security alerts

Every active administrator is emailed (template security.alert, see Notifications and Email) when any of these happen:

Alerts need SMTP to be configured. Each one is listed in the Notifications delivery log.

10.6 Evidence file fingerprints

Every attachment gets a SHA-256 fingerprint of its bytes at upload, stored on its row and recorded in the upload's audit entry. Files uploaded before fingerprinting existed are hashed by the worker: once when it starts and again in each nightly run, until every file present has one. It only reads files; a file missing from the uploads volume stays without a fingerprint.

On an evidence record, Verify files re-hashes each stored file and reports it as matching, changed since upload, or missing, with a verify audit entry. A changed or missing file means the uploads volume no longer holds what was uploaded: check the volume and the server backup (Backup and Restore). After restoring the uploads volume, Verify files on the evidence an assessor relies on confirms the files came back intact.

Locked evidence (USER-MANUAL, Locked evidence and file fingerprints) keeps its files, its dates and its links to completed control tests. The nightly run locks evidence that supports a recorded test result once its newest file is a day old. Unlocking needs evidence:delete at the all level and a reason, so in the built-in roles only GRC Manager and administrators can unlock; give that right sparingly.

10.7 Files moved onto evidence

Controls, compliance requirements and account reviews take evidence records instead of loose files (USER-MANUAL, Files on controls, requirements and account reviews). Files attached to them before that are moved by the worker when it starts, after the fingerprint backfill: each becomes an evidence record linked to the same record, typed "Other: Migrated from control" (or requirement, or account review), owned by the record's owner, with the file moved onto it unchanged. Each move is a create audit entry under the evidence module by system, naming the attachment and where it came from. A file whose record no longer exists stays where it is. Later starts find nothing to move. The people who could read those files now need evidence:read to see them; check custom roles before the update.

10.8 Using the audit log as evidence

The audit log supports common control requirements such as NIST SP 800-53 AU-2, AU-3, AU-9 and AU-10, ISO/IEC 27001 Annex A 8.15, and SOC 2 CC6 and CC7 change and access monitoring. When an auditor asks for evidence:

1. Show integrity first. Click Verify audit log (or run the command line check) and capture the "Intact" result with its chain positions and time. The auditLog verify entry in the log records the same.
2. Show completeness of coverage. Point to this chapter's list of what is recorded, and to the append-only and separate-role protections. Show a sample entry for each relevant category with View diff.
3. Produce the population. Filter to the category in scope and use Export CSV; the log is sorted newest first. For populations over 5,000 rows, export day by day with the When filter, or by module, action or actor, or extract the period from the database (below).
4. Show access to the log. List who holds auditLog:read (the groups carrying GRC Manager, Auditor or a custom role with it) and the administrators. Only administrators can verify or prune.
5. Show retention. Filter Module auditLog, Action delete to show every prune and its cutoff, or show that there are none.

Typical evidence requests and how to answer them:

10.8.1 Keeping an external record

For the strongest evidence, record each verification outside TraxrGRC: run the command line check on a schedule, keep its JSON output (with the date) in a system the database owner cannot change, such as your SIEM or a write-once store. If the chain is ever rewritten, the recorded toSeq values and dates will not match what a later verification reports.

For extracting full entries with their diffs and hash values, the audit log is the audit_log table in the PostgreSQL database; a read-only query by an administrator (for example with psql in the db container) returns every column, including chainSeq, prevHash and hash. See Backup and Restore for database access.
